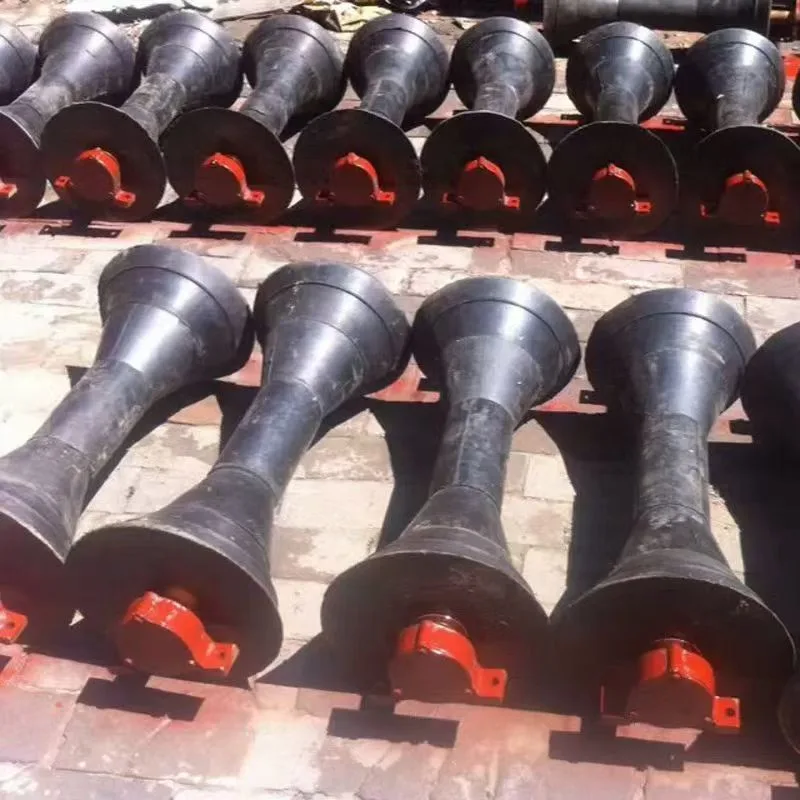

Conveyor Roller
Sealed conveyor rollers for supporting loaded and return strands in bulk-material conveyors.
Rollers & Idlers · HENGTAI CONVEYOR

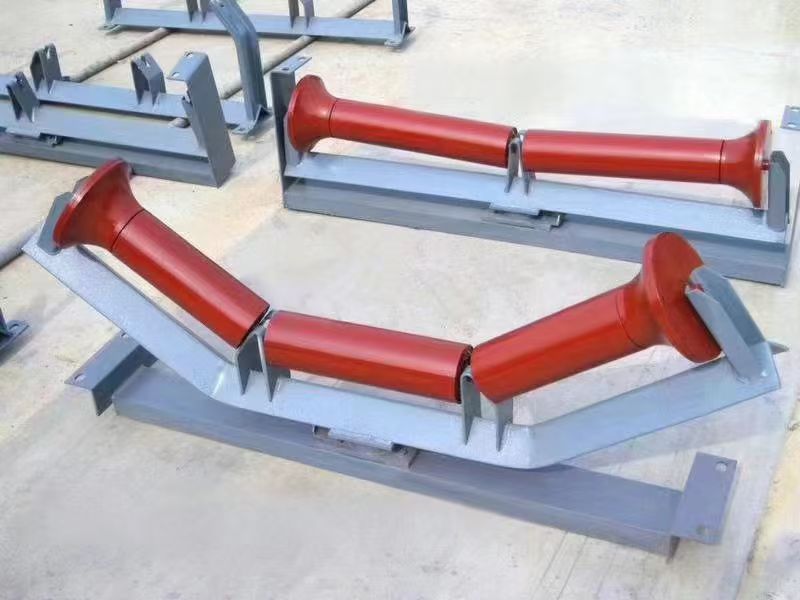

Carrying Idler
Carrying idler sets that support the loaded belt and maintain the specified trough profile.
PRODUCT PHOTOS
PRODUCT OVERVIEW
Carrying Idler selection and application
Carrying idler sets that support the loaded belt and maintain the specified trough profile. Final dimensions, materials, interfaces and inspection scope are confirmed against your conveyor data or drawing before quotation.
Key features
- 2-, 3- or 5-roll configurations
- Inline or offset arrangements
- Frame and roller package supply
Specification details for your inquiry
Roller dimensionsShell diameter and length in mm
Shaft and mountingShaft-end drawing, fixing dimensions and frame centres
Operating dutyBelt width, speed in m/s and material throughput in t/h
InstallationCarrying/return/impact position and installed trough angle
Provide the existing specification or required duty. The proposed product rating and dimensions will be confirmed in the quotation.SELECTION GUIDE
How to specify Carrying Idler
A carrying idler supports the loaded strand of a belt conveyor. The frame and rollers together establish the support geometry, so replacing only one component still requires checking the complete set. Trough angle and spacing should follow the conveyor design and conveyed material.
Information to include in your inquiry
Send belt width, trough angle, roller diameter, center and wing roller lengths, mounting centers and duty data. Identify inline or offset construction and include the frame drawing if available. If replacing an existing set, show the shaft-end mounting arrangement and the surrounding clearance.
Dimensions and documentation
For carrying idler, confirm trough angle, belt width, roll diameter, spacing. The configuration fields above are not a fixed model rating. Include quantity, a drawing or existing part reference, and the operating location in your inquiry. Availability, supplied materials and any inspection documents must be confirmed in the written quotation.
Explore conveyor applications · Discuss quality control and inspection · Request a carrying idler quotation
APPLICATIONS
Where this product is commonly used.
Bulk conveyorsMiningCementTerminals
Request a quotation for Carrying Idler
For a faster response, include quantity, dimensions or drawings, operating environment and destination country.
